18W USB-C Medical Power Delivery Charger

GT18-M-PD

18 Watt Medical Grade USB-C Power Delivery Power Supply

Power your next-generation healthcare product with a compact 18W USB-C PD medical power supply. Designed for OEM integration, this medical-grade USB-C adapter provides dependable power for medical devices, patient monitoring equipment, diagnostic systems and portable healthcare electronics.

With USB-C Power Delivery and 5–20V output, it offers a flexible alternative to traditional medical AC/DC adapters. Medical safety and EMC compliance make it a strong choice for manufacturers looking for a reliable USB-C charger for medical equipment.

Suitable for medical and healthcare applications requiring compact, efficient and internationally compatible USB-C power.

A black and white cross icon on a white background.

Medical Grade

It is a black and white icon of a power supply with UK plug.

Power Delivery

Variable Outputs

All outputs available from this single power supply.

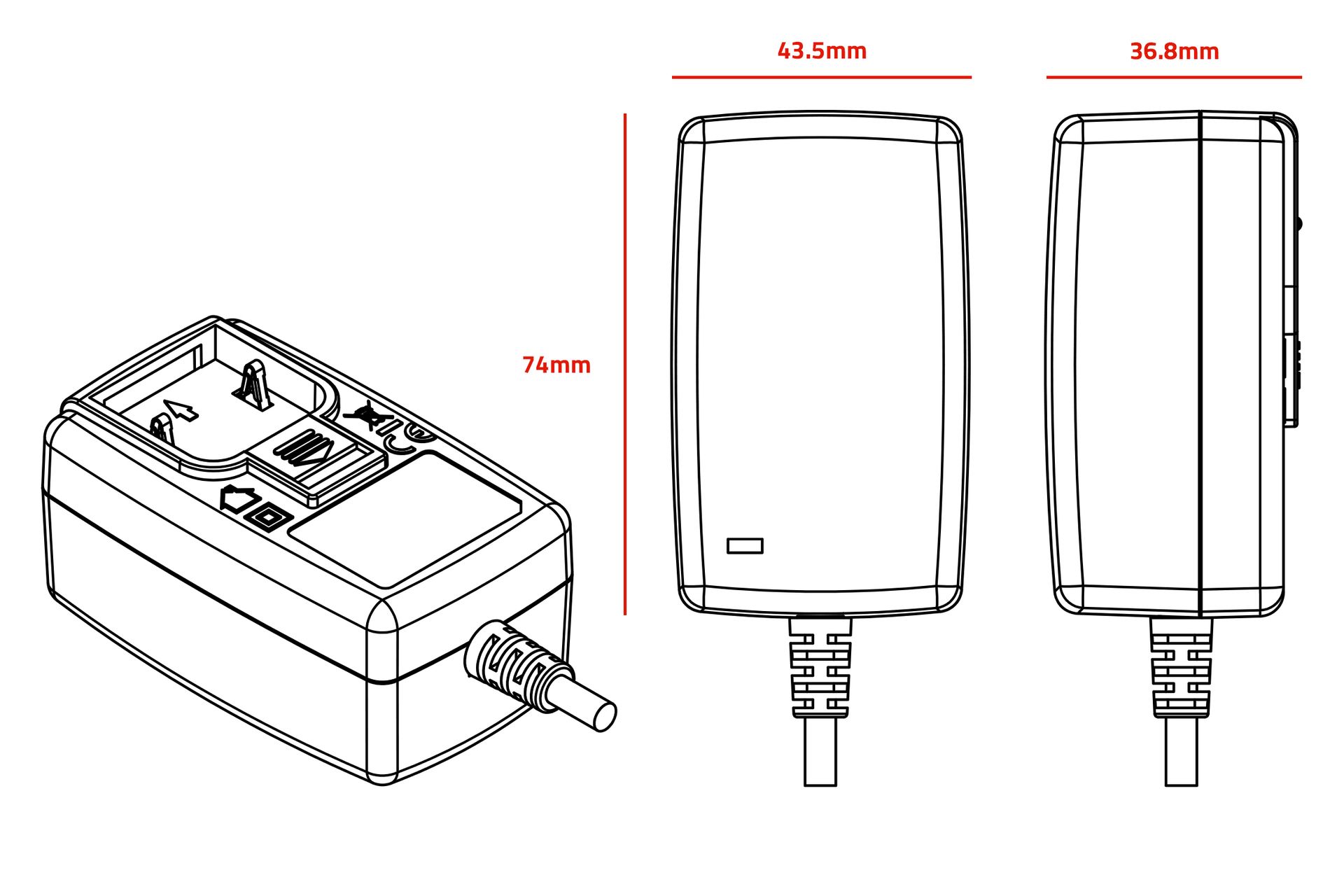

Dimentions

A black and white drawing of a power supply with measurements on a white background.

3D Viewer

Loading 3D model...

↔ Drag to rotate · Scroll to zoom

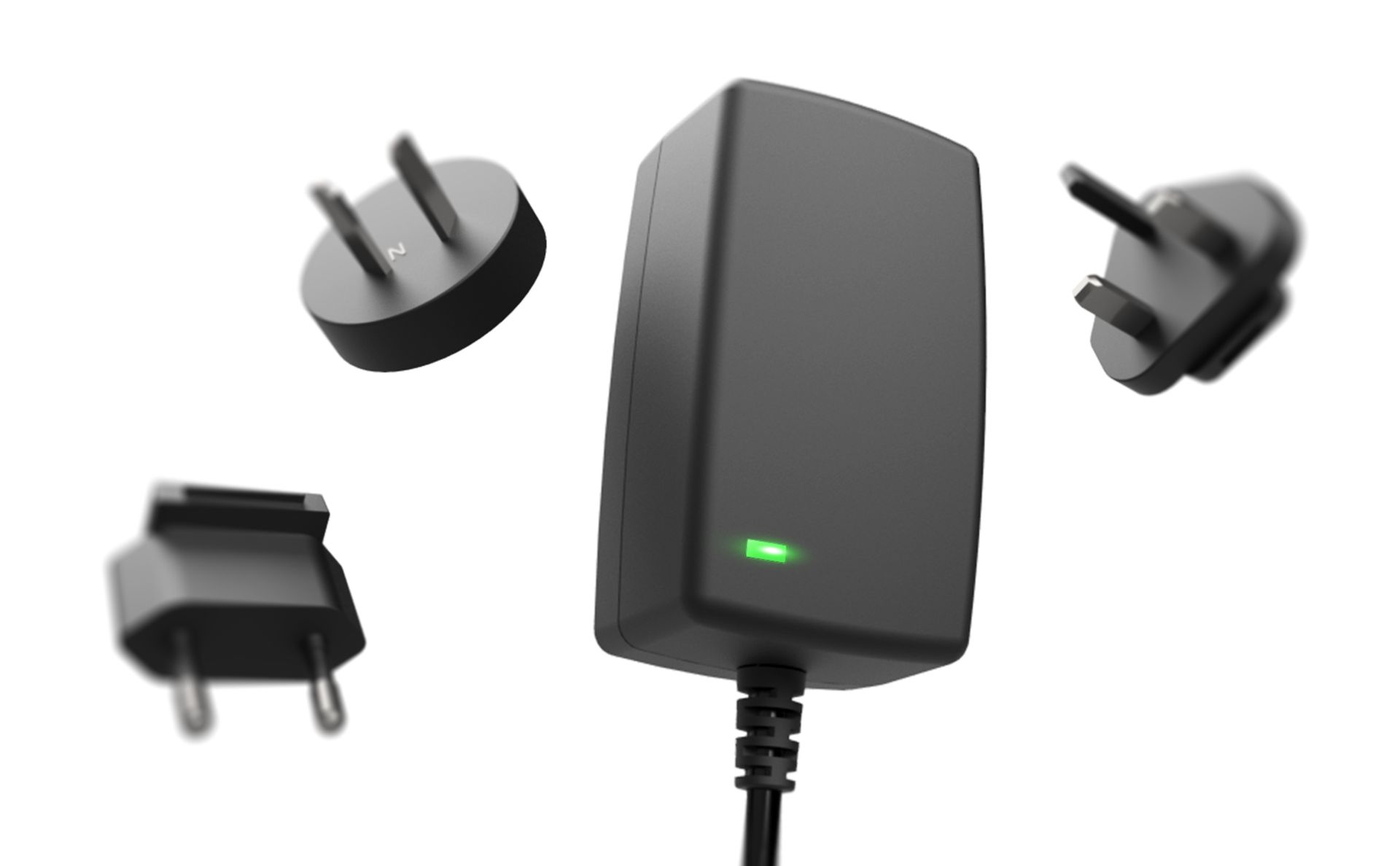

Interchangeable AC Plugs for World Wide use

How to fit AC plug

Cable Spec

Technical Data

Input voltage	100 – 240 V ± 10 %
Frequency	50 – 60 Hz
Input current	1.2 A
Leakage current	≤ 300 μA
Output voltage tolerance	± 5 %
Efficiency	DoE: Energy Efficiency level VI
MTBF	150,000 h*
