PD30-Mini

Mini 30 Watt USB-C Power Delivery Power Supply

A black and white line drawing of a factory.

Industrial / Home / Office Grade

It is a black and white icon of a power supply with UK plug.

Interchangeable Plugs

It is a black and white icon of a power supply with UK plug.

Power Delivery

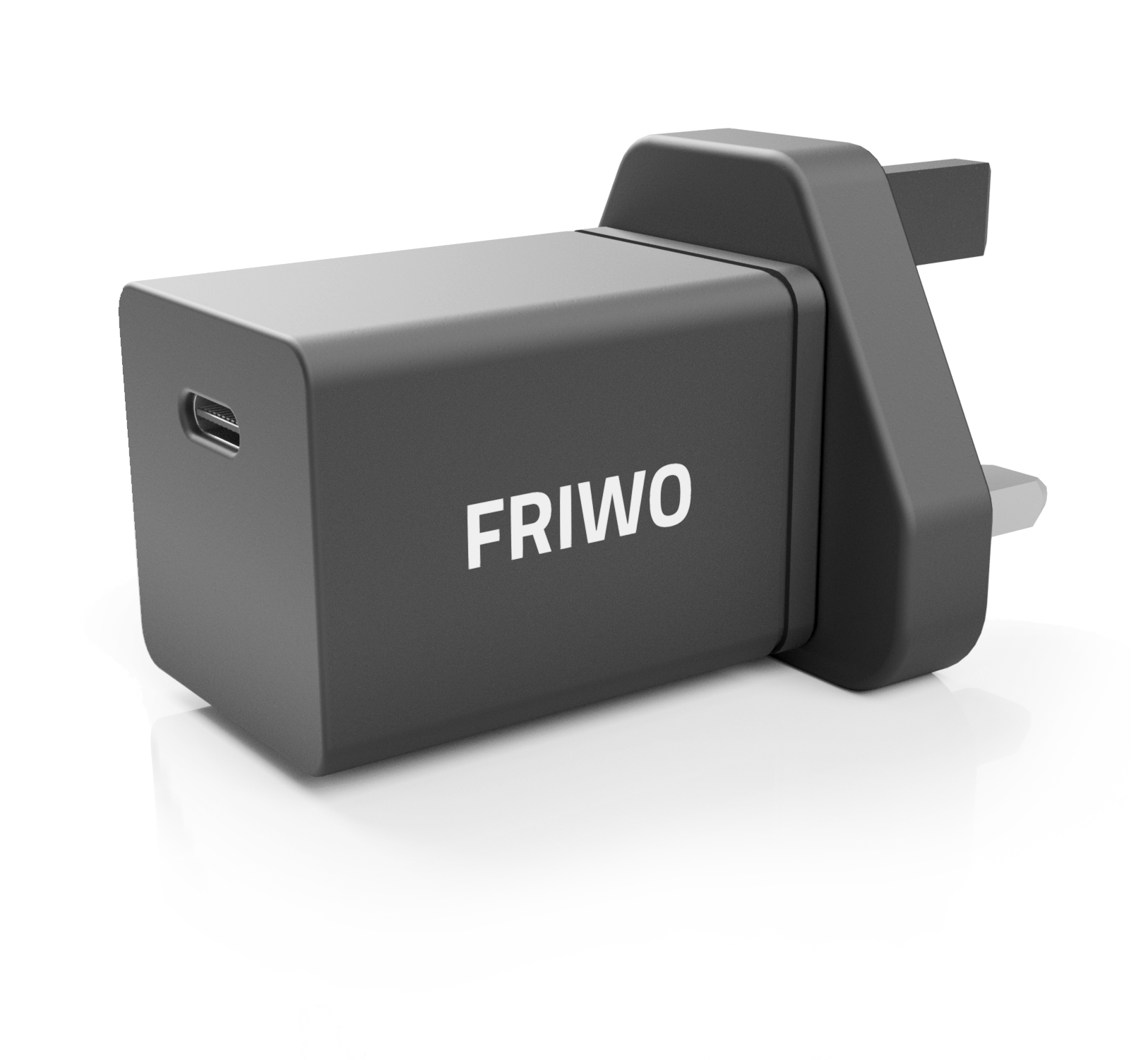

A black power supply is sitting on a white surface

Variable Outputs

All outputs available from this single power supply.

5V 3A*

9V 3A*

* Max Current Available at specified voltage.

12V 2.5A*

15V 2A*

20V 1.5A*

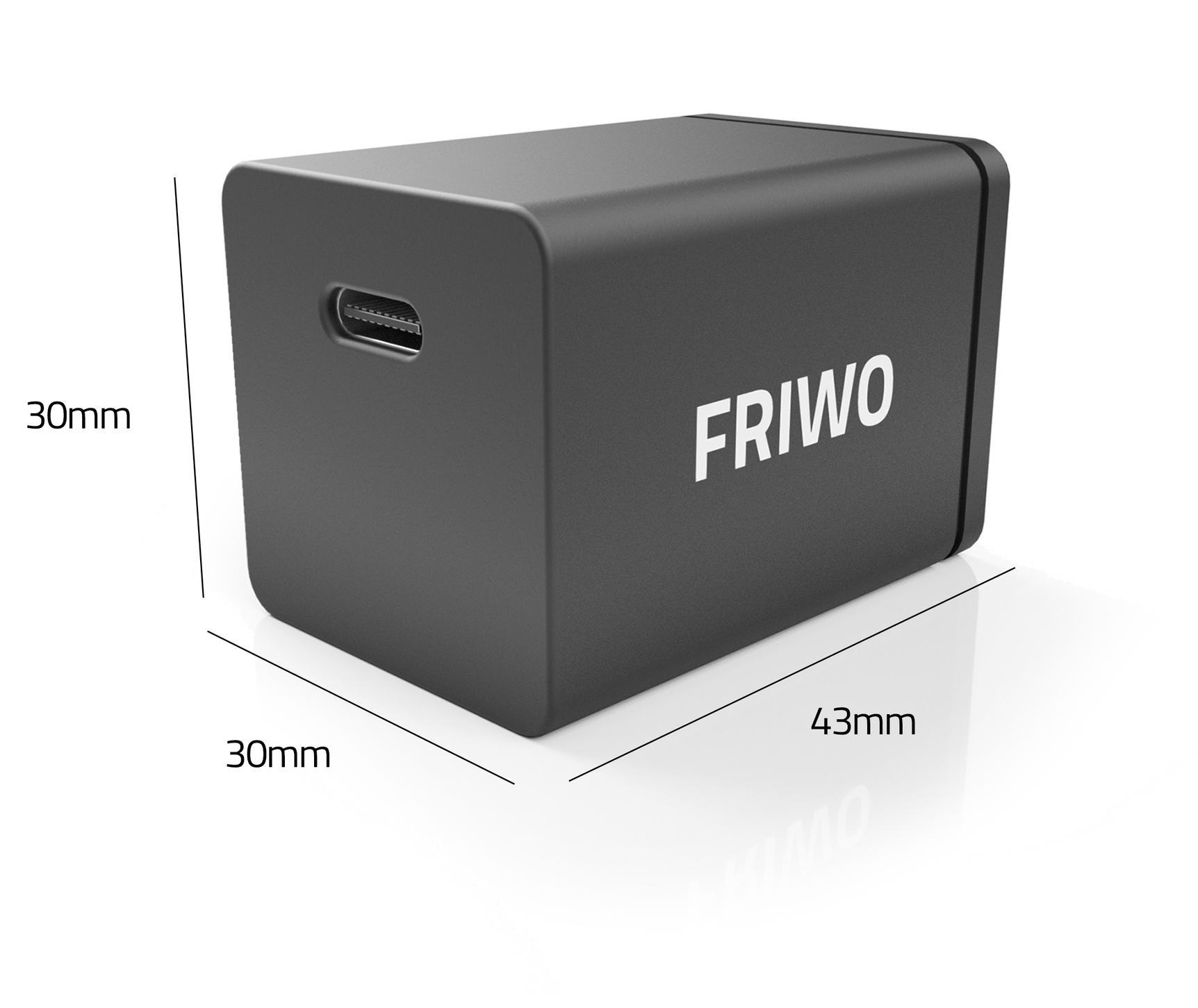

Dimensions

A black and white drawing of a power supply with measurements on a white background.

Technical Data

Input voltage 100 – 240 V ± 10 %
Frequency 50 – 60 Hz
Input current 1.2 A
Leakage current ≤ 10μA
Output voltage tolerance ±5%
Efficiency upto 89%
MTBF 100000 hrs

* based on calculations at at full load at 25 ℃ ambient calculated per SR332

Labels / Certifications

A black and white ce logo on a white background.

Further approvals possible after consultation.


Want to know more about Safety Agencies & Markings?

VIEW BLOG

Available Plugs

Environmental specifications

Operating temperature 0 – 40° C
Humidity 5 – 95 %
Storage temperature -20 – 85° C
Operating altitude 5000 m

Safety specifications

Safety Standard IEC60950-1, IEC62368-1
Approvals UK, EU, USA, AUS, JPN
Safety Class II
EMC IEC62368-1
