GT36-M-PD

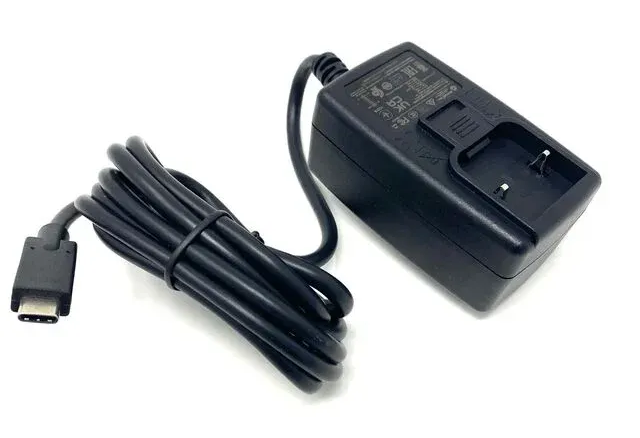

36 Watt Medical Grade USB-C Power Delivery Power Supply

A compact 36W medical-grade USB-C power supply designed for medical devices, healthcare equipment and professional electronics. The GT36-M-PD combines USB-C Power Delivery (PD) with selectable 5–20V output, providing a flexible power solution for OEMs and medical device manufacturers.


Certified to IEC 60601-1 and IEC 60601-1-2, with 2 × MOPP protection, this USB-C medical power supply delivers the safety and reliability required for demanding healthcare applications. Universal 100–240VAC input and interchangeable plugs make it suitable for products sold worldwide.


Ideal for medical devices, diagnostic equipment, monitoring systems and modern medical USB-C powered equipment.



A black and white cross icon on a white background.

Medical Grade

It is a black and white icon of a power supply with UK plug.

Power Delivery

Variable Outputs

All outputs available from this single power supply.

5V  3A*

9V 3A*

15V 2.4A*

12V 3A*

20V 1.8A*

 *Max Current Available at specified voltage.

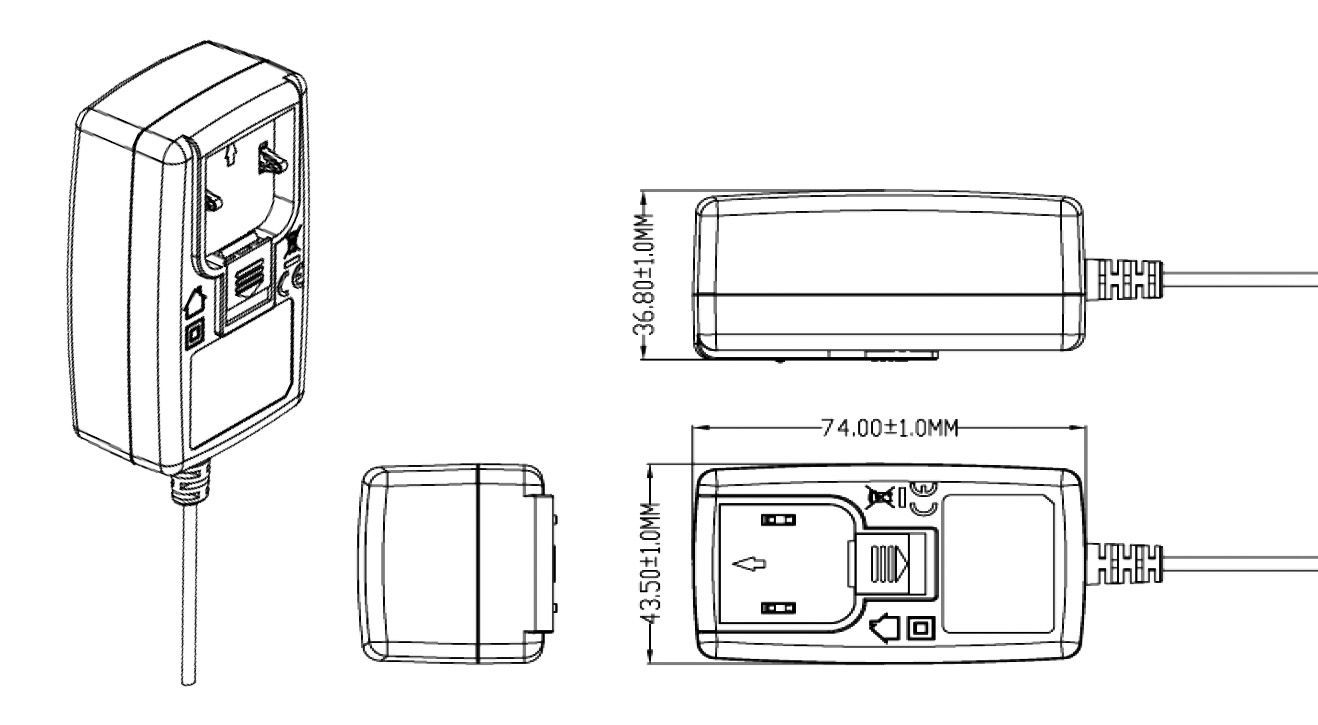

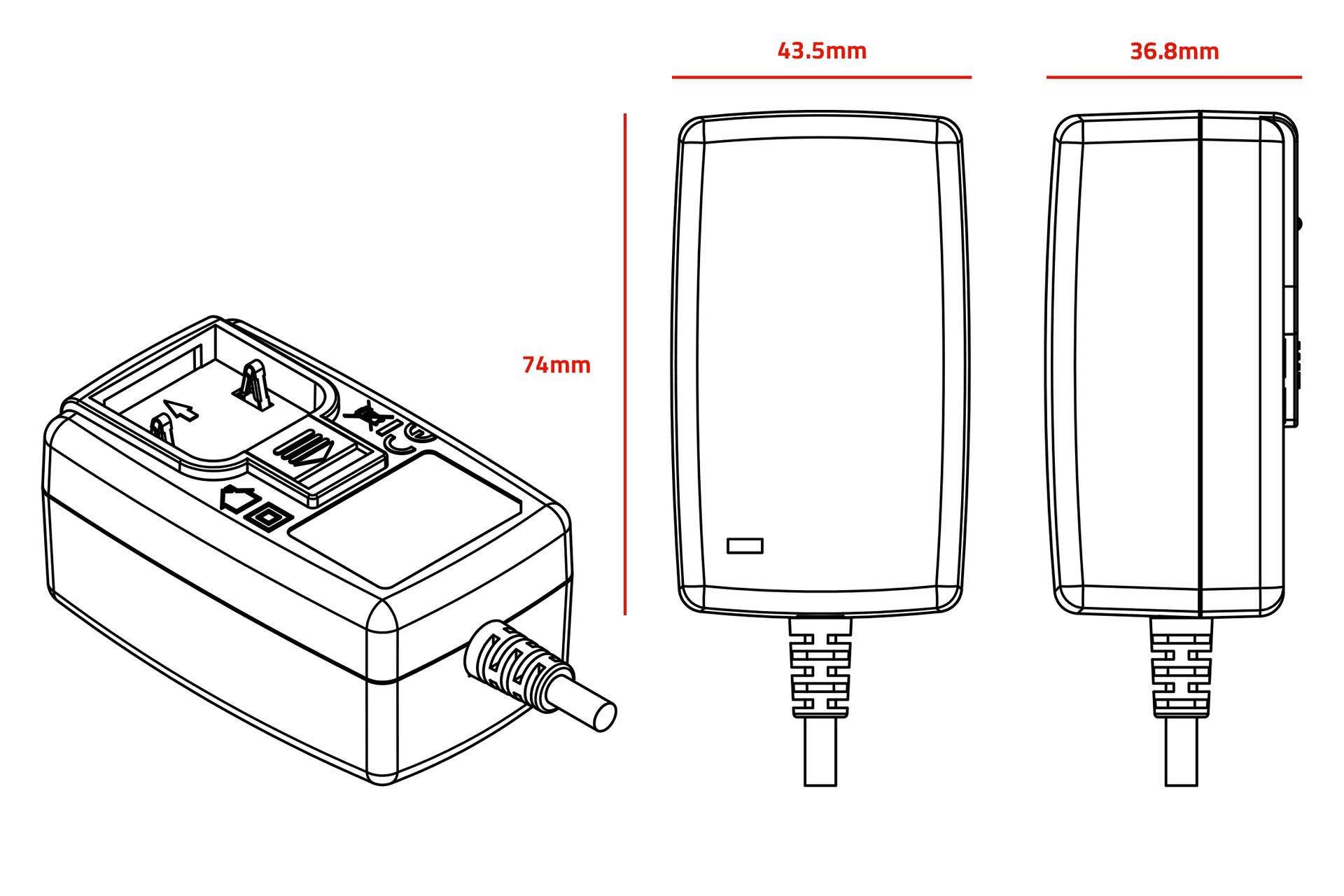

Dimentions

A black and white drawing of a power supply with measurements on a white background.

3D Viewer

Loading 3D model...
↔ Drag to rotate · Scroll to zoom

Interchangeable AC Plugs for World Wide use

A black and white drawing of a power supply with measurements on a white background.

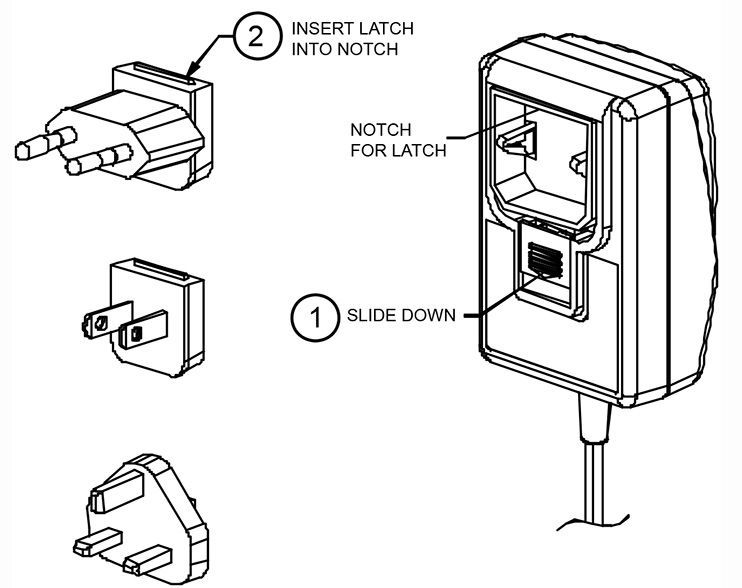

How to fit AC plug

A black and white drawing of a power supply with measurements on a white background.

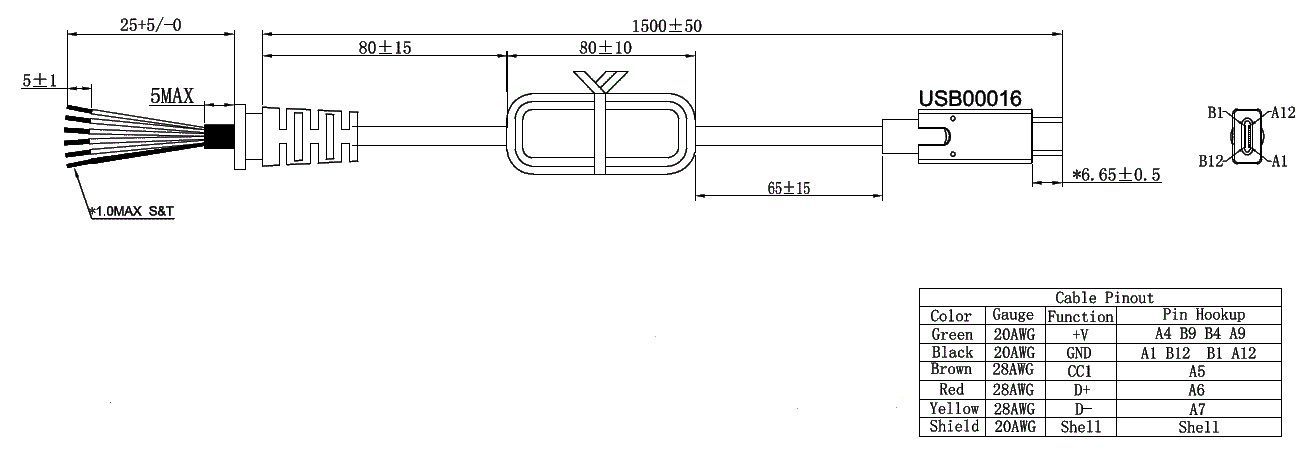

Cable Spec

A black and white drawing of a power supply with measurements on a white background.

Technical Data

Input voltage 100 – 240 V ± 10 %
Frequency 50 – 60 Hz
Input current 1.2 A
Leakage current ≤ 300 μA
Output voltage tolerance ± 5 %
Efficiency DoE: Energy Efficiency level VI
MTBF 150,000 h*

* based on calculations at at full load at 25 ℃ ambient calculated per SR332

Labels / Certifications

A black and white ce logo on a white background.
A black and white logo for a company called siq on a white background.
The RU logo is a black and white logo on a white background.
TUV Certificate

Further approvals possible after consultation.


Want to know more about Safety Agencies & Markings?

VIEW BLOG

Environmental specifications

Operating temperature 0 – 40° C
Humidity 5 – 95 %
Storage temperature -20 – 85° C
Operating altitude 5000 m

Safety specifications

Safety Standard IEC 60601-1
Approvals UK, EU, USA, AUS, JPN
Safety Class I
EMC IEC60601-1-2
Medical Protection 2 x MOPP
