NEO6 MEDICAL
NEO006.0-I-X
Medical Grade Interchangeable Power Supply

Input Voltage:   100 - 240V AC (±10%)


Output voltage:   Various (see table below)


Frequency:   50 - 60Hz


Leakage Current:   ≤ 10µA


Stand-by:   ≤ 0.1W


MTBF:   200,000 hours acc. Mil217F (based on calculations at 120Vac/60Hz & 230Vac/50Hz, ambient 25°C and 100% load)

(The MTBF are theoretically determined values, which does not guarantee the lifetime of the product or of the electrolytic capacitors)

Operating Temperature:   0 - 40°C


Storage Temperature:   -40 - 70°C


Operating Altitude:   3000m


Humidity:   10 - 95%


Standards:   IEC60601-1


Approvals:   EU, USA, AUS, JPN


Safety Class:   II


EMC:   EN 55022, EN 55024


Overload & Overvoltage protection


Continuously short circuit proof


DOE Level VI Efficiency

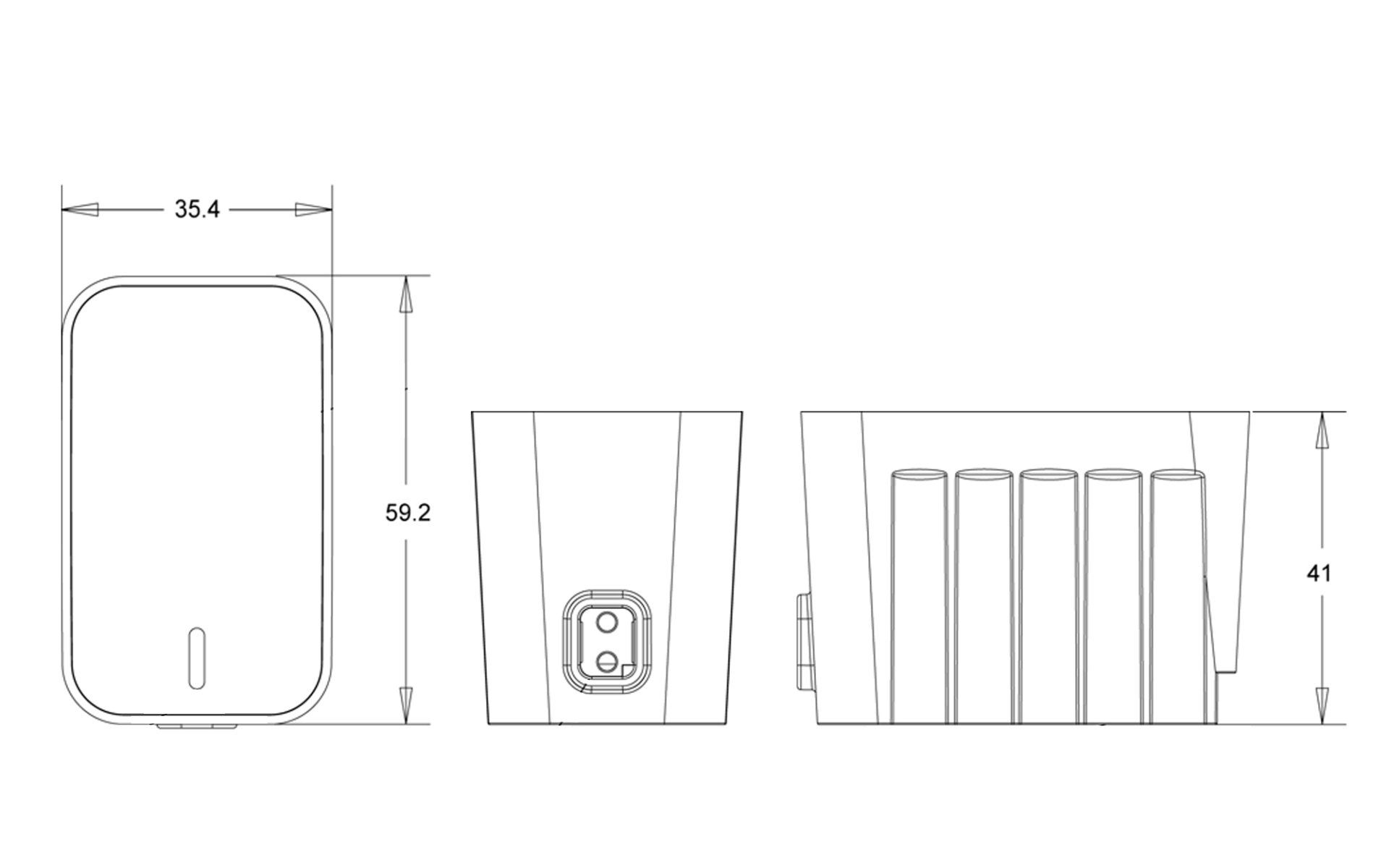

PSU Dimensions:   59.2 x 35.4 x 41mm


Weight:   62g


Casing:   Double Safety, Snapped & Welded


Plug Connector:   AC input / Interchangeable primary adapter system


DC output:   Secondary adapter system


View Accessories
AVAILABLE OUTPUTS*
CLICK TILES BELOW TO DOWNLOAD RELEVANT DATASHEET

  • CUSTOM OUTPUT

    Available for OEM Projects

    that meet the required MOQ

    Button
    • *MORE OUTPUTS AVAILABLE AS PART OF OUR STANDARD FOX MEDICAL RANGE
    6V - 7.5V - 9V - 15V - 18V
    Required Accessories
    For the operation of this device you need a primary AC adapter
    and a DC secondary adapter.

    This can be found here: ACCESSORIES

    IPX2 FOX PLUGS

    NEW!

    The optional IP42 plug adapter from FRIWO is an interchangeable adapter system that offers additional protection for use in damp environments.
    This PSU is also available as
    INDUSTRIAL GRADE

    We offer Full Component Traceability!

    Our NEO Power Supply Units have a QR Code implemented on the product housing and internal PCB's during manufacture.

    This gives details on when the part was created, which components where used and from where.


    We find this a very handy tool for quality control.

    This combined with our FOX NEO 3 Year Warranty is sure to give you peace of mind in the unlikely event something goes wrong!
