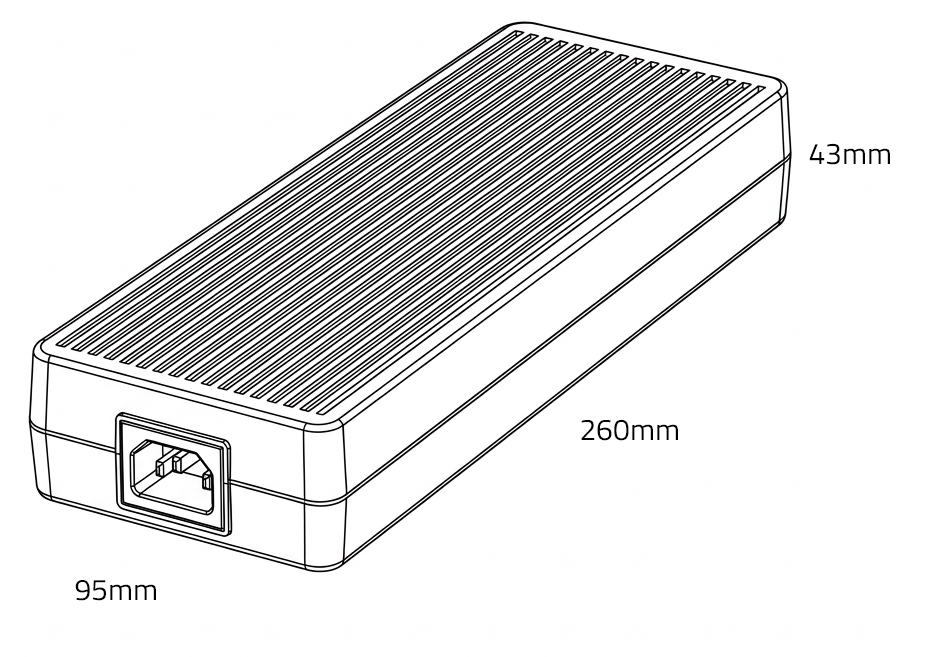

Dimensions
Technical Data
| Input voltage | 100 – 240 V ± 10 % |
|---|---|
| Frequency | 50 – 60 Hz |
| Input current | 7 - 3.5 A |
| Leakage current | ≤ 10 μA |
| Output voltage tolerance | ± 5 % |
| Stand-by | ≤ 1 W |
| MTBF | 100.000 h* |
* Mil217F based on calculations at 120 VAC / 60 Hz & 230 VAC / 50 Hz,
Ambient temperature 25°C, 100% load
Available Outputs
| MODEL No. | MAX. OUTPUT POWER (W) | OUTPUT VOLTAGE (VO) | MAX. LOAD (IO) | RIPPLE & NOISE |
|---|---|---|---|---|
| EM1450XA | 450W | 19~24V | 23.68A | 360mV |
| EM1450XB | 450W | 28~36V | 16.07A | 540mV |
| EM1450XC | 450W | 48~56V | 9.37A | 840mV |
| EM1450XD | 500W | 36~42V | 13.88A | 540mV |
| EM1450XE | 500W | 48~56V | 10.41A | 840mV |
NOTE:
1 : Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF
aluminum capacitor at full load and nominal line.
2 : Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.
3 : Max. Power (W) ≥ Vo x Io
Environmental specifications
| Operating temperature | -20 to 40° C |
|---|---|
| Humidity | 5 – 95 % |
| Storage temperature | -20 to 85° C |
| Operating altitude | 4000 m |
Safety specifications
| Safety Standard | IEC 60601-1 |
|---|---|
| Approvals | TBC |
| Safety Class | II |
| EMC | EN 60601-1-2:2015 |
| Medical Protection | 2 x MOPP |
