*PSU Shown with fixed EU & US plugs
FOX5 FIXED PLUG USB
FW8005/EU/05 & FW8005/US/05
Industrial Grade USB Power Supply

Input Voltage:   100 - 240V AC (±10%)


Output voltage:   Various (see table below)


Frequency:   50 - 60Hz


Leakage Current:   ≤ 10µA


Stand-by:   ≤ 0.1W


MTBF:   200,000 hours acc. Mil217F (based on calculations at 120Vac/60Hz & 230Vac/50Hz, ambient 25°C and 100% load)

(The MTBF are theoretically determined values, which does not guarantee the lifetime of the product or of the electrolytic capacitors)

Operating Temperature:   0 - 40°C


Storage Temperature:   -40 - 70°C


Operating Altitude:   3000m


Humidity:   10 - 95%


Standards:   IEC 62368-1, IEC 60335


Approvals:   EU, USA, AUS, JPN


Safety Class:   II


EMC:   EN 55022, EN 55024


Overload & Overvoltage protection


Continuously short circuit proof


DOE Level VI Efficiency

PSU Dimensions:   55 x 31.5 x 41mm


Weight:   50g


Housing Flame Class:   UL 94 V0


Casing:   Double Safety, Snapped & Welded


Plug Connector:   AC input / Interchangeable primary adapter system


DC output:   Secondary adapter system


View Accessories

IP Rotection rating:   IP40


Condcted and Radiated Emmisions:   N55032, EN55011, FCC15, Class B, EN60601-1-2


Immunity:  EN55024, EN60601-1-2


Harmonics:   EN61000-3-2


Flicker noise:  EN61000-3-3


ESD (contact/ air):  EN61000-4-2


Immunity against radiated field:  EN61000-4-3


ETF/ Burst:  EN61000-4-4


Surge: EN61000-4-5


Immunity against conducted disturbances: EN61000-4-6


Voltage dips:  EN61000-4-11


Immunity against magnetic field: EN61000-4-8


Drop test: Standard: IEC 60068-2-32, Surface: steel, Drop height: 1 m, Numbers of Drops (total): 3


Vibration:  Standard: IEC 60068-2-6, Frequency range : 10 – 500 Hz, Cross- over-frequency : 58 – 62 Hz, Displacement amplitude : 0.2mm, Peak acceleration : 3 g, Number of cycles: 10 per axis

FIXED EU VARIANT
CLICK TILES BELOW TO DOWNLOAD RELEVANT DATASHEET

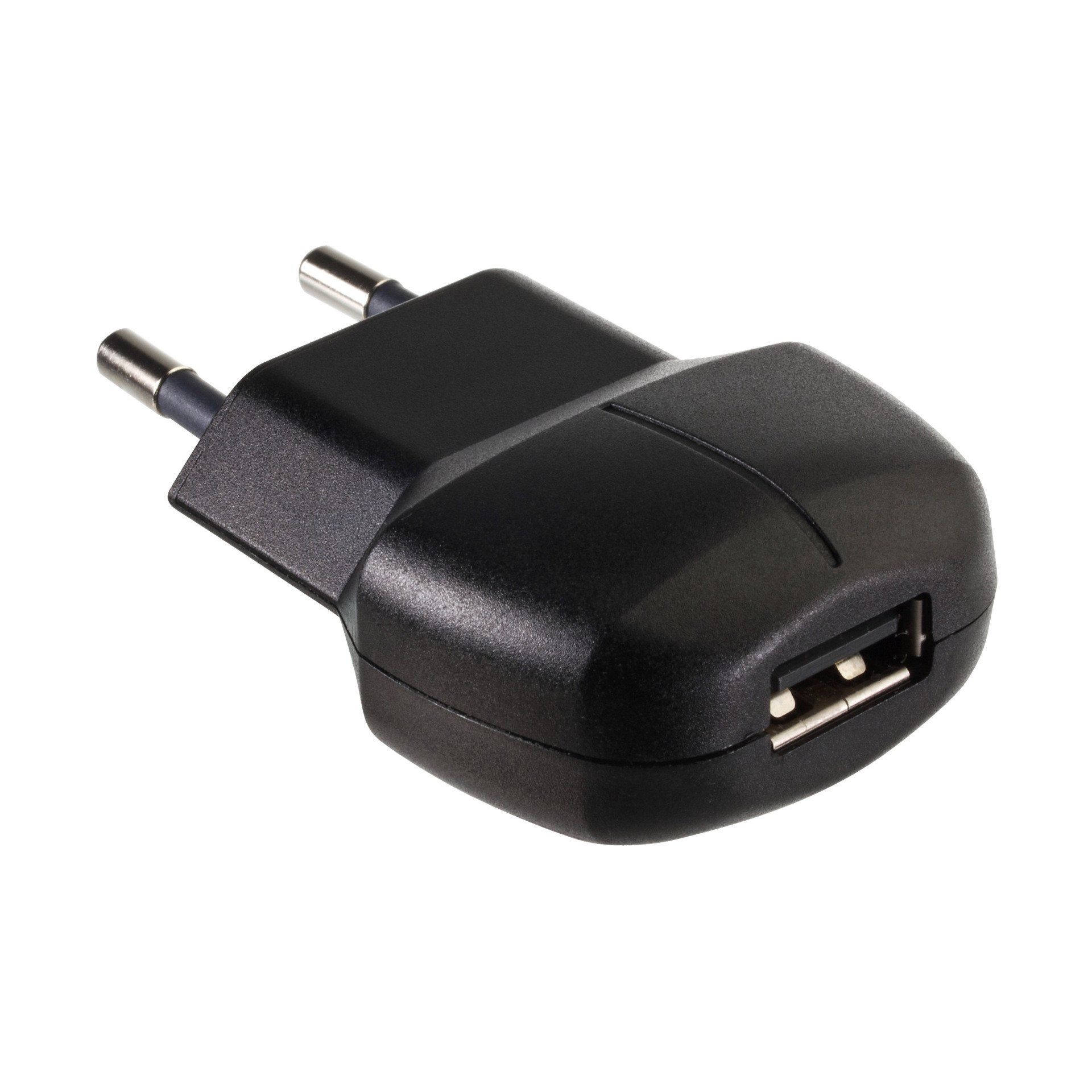

A close up of a black usb charger on a white background
A blue 5v logo on a white background.
A blue 5v logo on a white background.
FIXED USA VARIANT
CLICK TILES BELOW TO DOWNLOAD RELEVANT DATASHEET

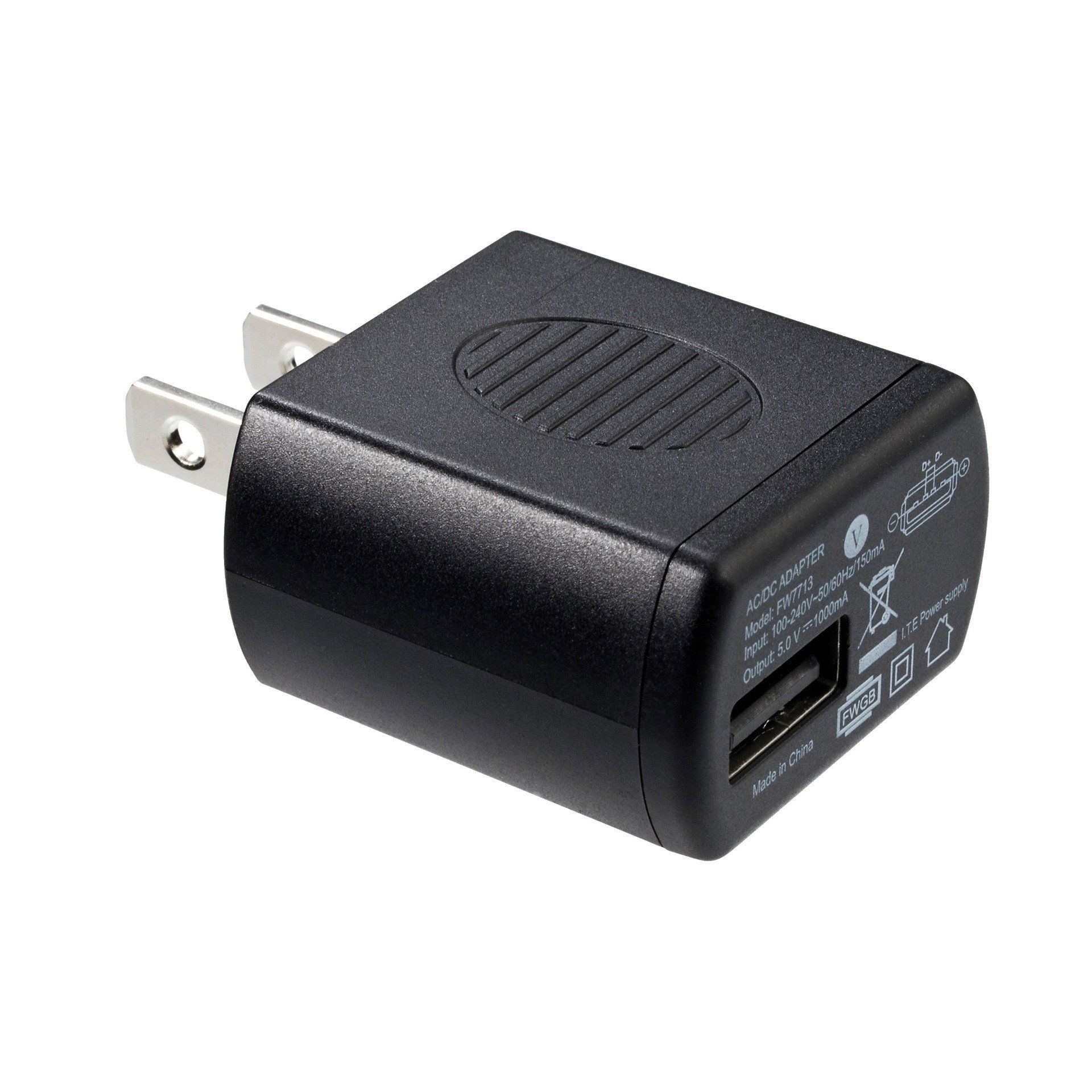

A black charger with a usb port on the side
A blue 5v logo on a white background.
A blue 5v logo on a white background.
