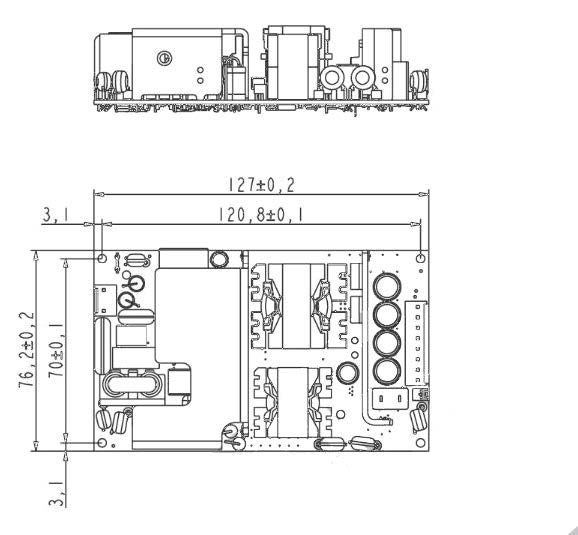

Dimensions
Technical Data
| Input voltage | 100 – 240 V ± 10 % |
|---|---|
| Frequency | 50 – 60 Hz |
| Input current | 3000 – 1300 mA |
| Earth Leakage Current | ≤ 100 μA |
| Touch Current | ≤ 100 μA |
| Output Voltage Tolerance | +/- 5 % |
| Stand-by | ≤ 0.15 W |
| MTBF | 200.000 h* |
* Mil217F based on calculations at 120 VAC / 60 Hz & 230 VAC / 50 Hz,
Ambient temperature 25°C, 100% load
DID YOU KNOW?

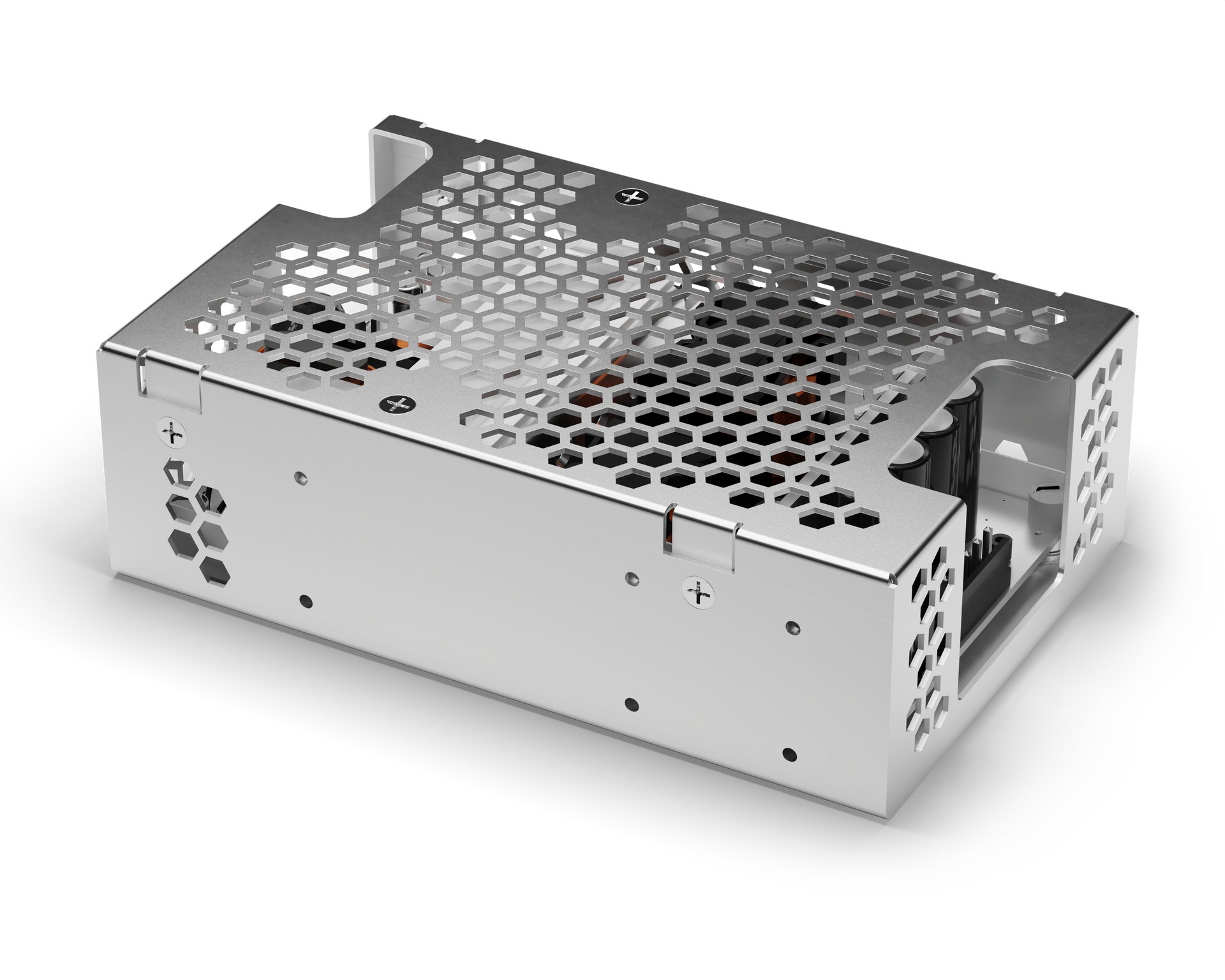

This Open Frame power supply is available with a cage!
This ensures both safety and durability for various applications. The PSU comes in multiple voltage options to suit different requirements, including 12V, 24V, and 48V, making it a versatile choice for a wide range of electronic devices and systems!
Available Outputs
To access the respective datasheet, just click on the appropriate download button below.
Environmental specifications
| Operating temperature | -25 – 70° C |
|---|---|
| Humidity | 95 % Max. |
| Storage temperature | -40 – 85° C |
| Operating altitude | 5000 m |
Safety specifications
| Safety Standard | IEC60601-1, ES60601-1, IEC62368-1 |
|---|---|
| Approvals | UK, EU |
| EMC | EN 61000-4-5, EN 61000-4-4, EN 61000-4-2 |
| Medical Protection | 2 x MOPP |
TBA
